Home » Products » Vibrating Feeder

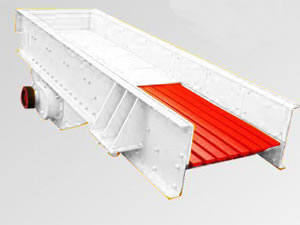

Vibrating Feeder

The vibrating feeder is a new type of linear feeding machine especially used for evenly and continuously conveying large stone materials to coarse crusher. It is also known as stone feeding machine. And it is widely used in fields of metallurgy, coal mining, mineral processing, building materials, chemical and so on. Vibrating feeding machine, used as vibrating feeder, mainly works together with crushing machine and screening equipment.

To enable this vibrating feeder to better endure the impact of bulk materials, this feeder has been designed according to the structural characteristics of double eccentric shaft vibration exciter.

Features of this feeder are strong feeding capacity, stable vibrating, reliable performance and longer service life.

Technical Parameters:

Model Max. feeding size (mm) Processing capacity (t/h) Eccentric shaft speed(r/mm) Motor power (kw) Theoretical weight (t) Slot size (mm) Overall dimensions (mm) (length ×width ×height)
GZD-300×90 450 40-120   2.2×2 2.0 3000×900 3307×1430×1450
ZSW-380×96 500 80-160 500-720 11 3.8 3800×960 3892×2219×1854
ZSW-490×110 600 120-280 500-800 15 5.3 4900×1100 4950×2425×2031
ZSW-600×130 750 400-560 500-800 22 7.4 6000×1300 6082×2580×2083

As a professional manufacturer and supplier of vibrating feeder in China, Shanghai Landytop Heavy Industry Machinery Co., Ltd still supply customers across the globe with jaw crusher, stone crusher, cone crusher, two in one crushing machine, superfineness energy saving crush equipment, vertical shaft impact crusher, vibrating screen, sand washer, belt conveyor, crushing plant, etc. All of our products have obtained ISO9001 certification, and they have been well received by clients from different countries and regions, like Mongolia, Russia, Saudi Arabia, etc. If you need vibrating feeder, please don't hesitate to contact us.
