Home » Products » Vertical Shaft Impact Crusher

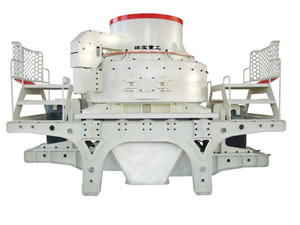

Vertical Shaft Impact Crusher

The vertical shaft impact crusher is a kind of core equipment in sand making industry, and it is widely used in various fields, like stone processing, sand making, refractories, bauxite, diamond dust, building materials, etc. It is also utilized in the material feeding process of ball mill, as well as finished processing of industrial minerals.

Our VSI vertical shaft impact crusher is a new type of sand making equipment developed on the basis of advanced foreign technologies and features of Chinese mineral resources.

Features of Vertical Shaft Impact Crushing Machine:
1.It features high productivity, low abrasion, and prolonged service life. Its wear-resistant accessories are easy and convenient to replace.
2.Its advanced oil lubricating system has helped to minimize its maintenance frequency.
3.Large crushing ratio, reliable performance, low labor intensity and convenient maintenance can be found in this vertical shaft impact crusher.
Technical Parameters:

Model Feeding capacity (t/h) Max. feeding size (mm) Rotating speed (mm) Power (kw) Overall size (mm) (length ×width× height) Theoretical weight (t) Thin oil lubrication station
Center feeding Full center feeding Soft material Hard material Motor power of dual pump(kw) Safety protection Heatingpower of oil tank (kw) Overall dimensions (mm) (length ×width× height)
VSI- 7618 150-280 70-140 1700-1900 110-150 4200×2380×2350 12.1 2×0.31 Automatically stopping work when without oil; water cooling; started by motor heating in winter 2 820×520×1270
VSI- 8526 240-380 120-200 1500-1700 180-120 4240×2550×2750 14.8
VSI- 9532 350-540 180-280 1300-1510 260-320 4660×2650×2950 18.5
VSI- 1146 500-640 250-360 1100-1310 400-400 5200×2840×3370 27.3

Shanghai Landytop Heavy Industry Machinery Co., Ltd is a professional manufacturer and supplier of vertical shaft impact crusher in China. In addition to vertical shaft impact crusher, we still provide jaw crusher, impact crusher, cone crusher, two in one crusher, superfineness energy saving crusher, vibrating screen, vibrating feeder, sand washer, belt conveyor, crushing plant, etc. All of those products have obtained ISO9001 certificate. If you're interested in our vertical shaft impact crusher, please contact us freely.
