Home » Products » Belt Conveyor

Belt Conveyor

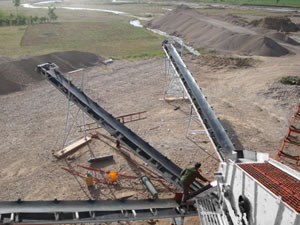

The belt conveyor is especially used to convey loose materials and whole items in mining, metallurgy, stone,coal industries and more. It can be used individually as well as in conjunction with different conveying machines in crushing site.

It is mainly made up of rack (frame), conveying belt, belt roller, tension device and transmission device. The frame is made from high-quality steel plates, and its surface is at certain inclined angle. Besides, its frame is equipped with belt roller and carrier roller to drive and support the conveyor belt.

Characteristics of this belt conveyor are big conveying capacity, simple structure, easy maintenance and standard components.

Technical Parameters:

Belt width (mm) Conveying length Conveying speed (m/s) Conveying capacity (t/h)
Power (KW)
400 ≤12 12~20 20~25 1.3~1.6 40~80
1.5 2.2~4 4~7.5
500 ≤12 12~20 20~30 1.3~1.6 40~80
3 4~5.5 5.5~7.5
650 ≤12 12~20 20~30 1.3~1.6 130~320
4 5.5 7.5~11
800 ≤6 6~15 15~30 1.3~1.6 280~540
4 5.5 7.5~15
1000 ≤10 10~20 20~40 1.3~2.0 430~850
5.5 7.5~11 11~12
1200 ≤10 10~20 20~40 1.3~2.0 655~1280
7.5 11 15~30

As a professional manufacturer and supplier of belt conveyor in China, Shanghai Landytop Heavy Industry Machinery Co., Ltd still supply customers across the globe with jaw crusher, impact crusher, spring cone crusher, two in one crusher, superfineness energy saving crusher, vertical shaft impact crusher, vibrating screen, vibrating feeder, sand washer, crushing plant, etc. All of our products have obtained ISO9001 certification, and they have been well received by clients from different countries and regions, like Mongolia, Russia, Saudi Arabia, etc. If you need belt conveyor, please don't hesitate to contact us.
