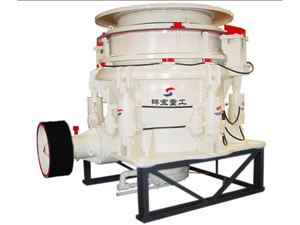

Hydraulic Cone Crusher

Features:
1.The hydraulic cone crusher is a composite crushing machine featuring simple construction, stable operation, reliable performance and high productivity.
2.Cast steel or C02 has been used in protecting its frame, and the frame has passed annealing treatment. So the frame is firm and durable.
3.Manganese steel pieces are utilized to protect its parts that are easy to wear, in which way the service life of the composite hydraulic cone crusher has been dramatically prolonged.
4.The spring locking mechanism ensures stable crushing force for this kind of crusher, as well as provides excessive release protection.
5.The oil cylinder of the hydraulic cone crusher can remove aggregates and items that are difficult to crush in the crushing chamber. As a result, the maintenance time of the cylinder is significantly reduced.
6.Hydraulic adjustment mode is designed for its discharge opening, which is quick, convenient and accurate.
7.The maze-type dustproof ring sealing way ensures the cleanness of its lubricating oil.
8.The lubricating system is designed with oil-return and temperature protection devices.
9.Large crushing ratio and high producing efficiency are available for this composite hydraulic cone crusher. Technical Parameters:

Specification	Chamber shape	Max. feeding size (mm)		Min. size of discharge opening(mm)		Motor power(kw)		Close discharge size(mm) Capacity (TPH)							Theoretical weight (t)
SCC1000	C	160		13	90~110					80	100	135	150	175	10.8
	M	115		10	90~110				65	75	90	120	135	150	10.8
	F	80		8	90~110		50		55	65	70	95			10.51
	EF	50		6	90~110		52		62	72	78	102			10.51
SCC1160	C	180		13	110~132					115	135	150	180	200	15.5
	M	130		10	110~132				100	110	120	135	165	175	15.5
	F	90		10	110~132				80	105	110	140			15.5
	EF	60		6	110~132		60		74	105	110	130			15.5
SCC1300	C	200		16	132~160						150	180	200	230	22.3
	M	150		13	132~160					115	140	160	190	210	22.3
	F	102		10	132~160				90	115	145	160			22.3
	EF	70		8	132~160				88	110	135	155			22.3
SCC1380	C	215		19	185~220							200	220	260	26.3
	M	160		16	185~220						155	180	200	220	26.3
	F	115		13	185~220					150	190	210	230		26.3
	EF	76		8	185~220				122	148	185	200			26.3
SCC1500	C	235		22	185~220							240	265	300	37.75
	M	175		19	185~220							215	240	265	37.75
	F		130	13	185~220					180	210	235	255	275	37.75
	EF		90	10	185~220				148	178	220	265			37.75
SCC1680	C		267	22	250~300								330	390	44.3
	M		203	16	250~300						230	270	300	330	44.3
	F		140	13	250~300					185	225	265	340		44.3
	EF		95	10	250~300					180	220	260	335		44.3

Shanghai Landytop Heavy Industry Machinery Co., Ltd is a professional manufacturer and supplier of composite hydraulic cone crusher in China. In addition to composite hydraulic cone crusher, we still provide jaw crusher, impact crusher, spring cone crusher, two in one crusher, superfineness energy saving crusher, vertical shaft impact crusher, vibrating screen, vibrating feeder, sand washer, belt conveyor, crushing plant, etc. All of those products have obtained ISO9001 certificate. If you're interested in our composite hydraulic cone crusher, please contact us freely.
